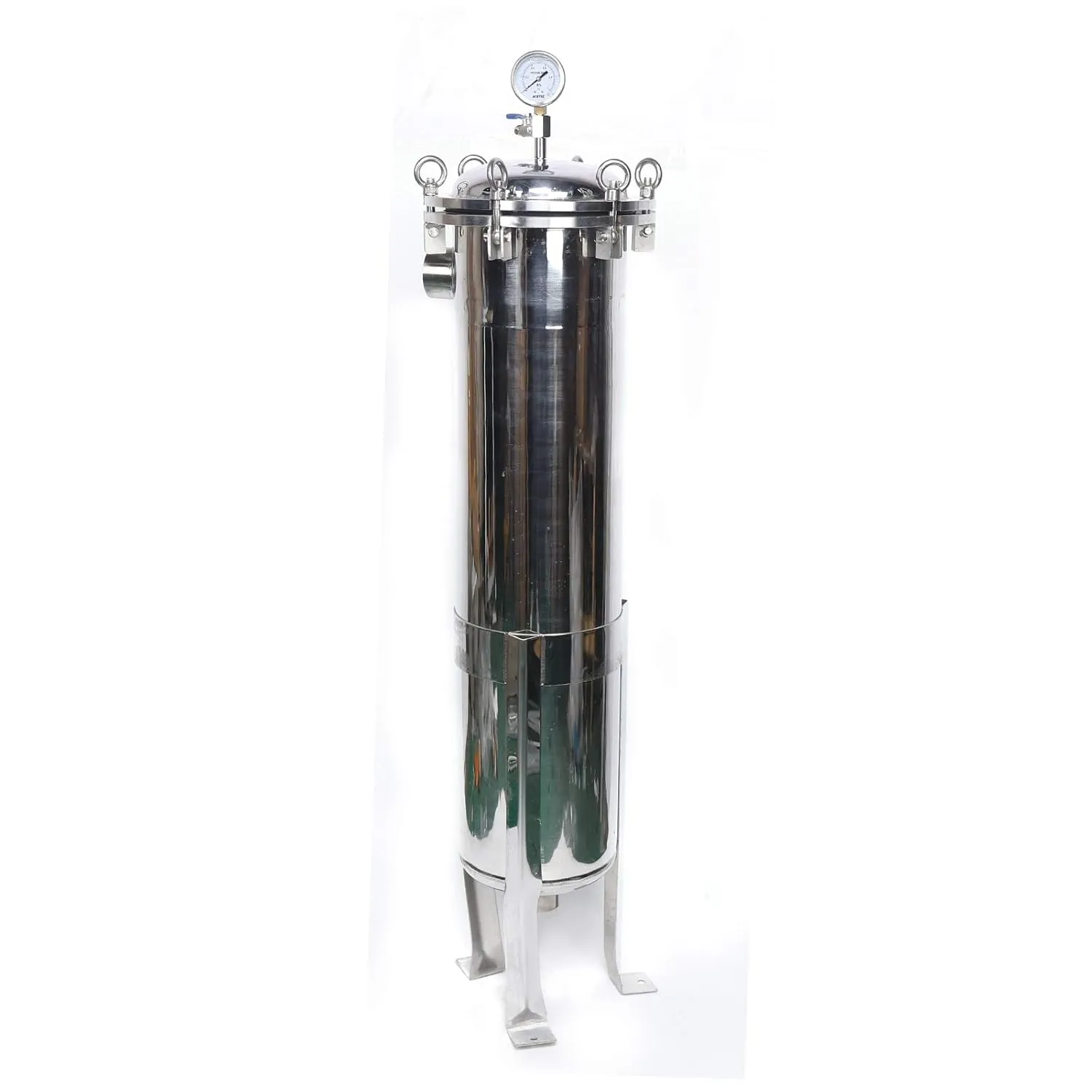

Name: 2" NPT Bag Filter Housing, 304 Stainless Steel Sock Filter #2 Bag Filtering Equipment Industrial High-Pressure Filtration System Heavy Duty Solid-Liquid Separation Tool (30-40t/h Flow Rate)
SKU: 671141

【Sturdy And Durable】This filter is made of high-quality 304 stainless steel with a wall thickness of 2 mm, and is matched with a delicate mirror polishing process, making this product scratch-resistant and not easy to deform. In addition, the probability of side leakage of the filter bag is low, ensuring the filtration accuracy; the filter bag can be quickly replaced to reduce operating costs. The filter bag is supported by a metal mesh basket, which helps to extend the service life.
【Efficient Filtration】This stainless steel bag filter is equipped with a 7.1*31.9-inch filter bag with a filtration area of up to 4.95 square feet. The filtrate flows into the filter bag from the side inlet of the filter housing, so that the liquid flows from high to low, so that the filter bag is not affected by turbulence, thereby improving the filtration efficiency and service life. It is suitable for many fields such as water treatment, ink, petroleum, beverages, etc.
【Excellent Performance】The filter unit of this bag filter is mainly composed of the filter cartridge body, filter cartridge cover, quick-open mechanism and stainless steel filter bag reinforced mesh basket. The filter bag installed in the reinforced mesh basket can effectively intercept impurities. After the liquid penetrates the filter bag of the required fineness, qualified filtrate can be obtained, thereby achieving the effect of liquid filtration, purification, separation and recovery.
【Adjustable Height】You can adjust the overall height of the stainless steel filter (45.1-52.9 inches) by adjusting the support feet to determine the height of the machine from the ground according to the height of the inlet and outlet. It is also equipped with a pressure gauge with excellent shock resistance, an accuracy of 2.5, and a measurement range of 1.0MPa, which is convenient for real-time and accurate monitoring of internal pressure and timely release of overpressure.
【Thoughtful Design】The 3 adjustable feet of this 2" npt filter are sturdy and durable, ensuring stability and safety during use. And the pre-drilled holes can fix the product to the ground to further enhance stability. At the same time, the pressure relief ball valve can release the exhaust pressure with one button to prevent the internal pressure of the filter from being too high and extend the service life of the machine. In addition, its lifting ring nut can easily and quickly fix the cover.

Description

This 304 stainless steel bag filter is crafted from high-grade materials with a sturdy and durable structure and strong corrosion resistance. It has a compact and reasonable design, easy to install and clean, can efficiently filter a variety of impurities, and is suitable for a variety of liquid filtration scenarios, making it an ideal choice for improving production efficiency and guaranteeing product quality.

Specification

Mount Type: Floorstanding

Assembly Required: Yes

Style: Modern

Color: Silver

Material: 304 Stainless Steel

Process: Mirror Polishing

Thickness: 2mm/0.08in

Filter Bag Size: 180*810mm/7.1*31.9in

Height Range: 1145-1345mm/45.1-52.9in

Support Feet Length: 570mm/22.4in

Center Straight Barrel Length: 860mm/33.86in
