- DIY Electric Bike Kit: Transform your bike into an electric bike with our lithium battery modified controller set, designed for 500W motors. Ideal for cyclists seeking more riding fun and challenges.
- Advanced S810 Display: Features a high-quality ABS meter that displays switch buttons, light switches, battery power, and other useful data while riding. The large screen makes it easy to view information at a glance.
- Circuits : The controller's shell, made of high-quality metal with a grooved design, ensures excellent heat dissipation, preventing thermal overload of the internal circuit.

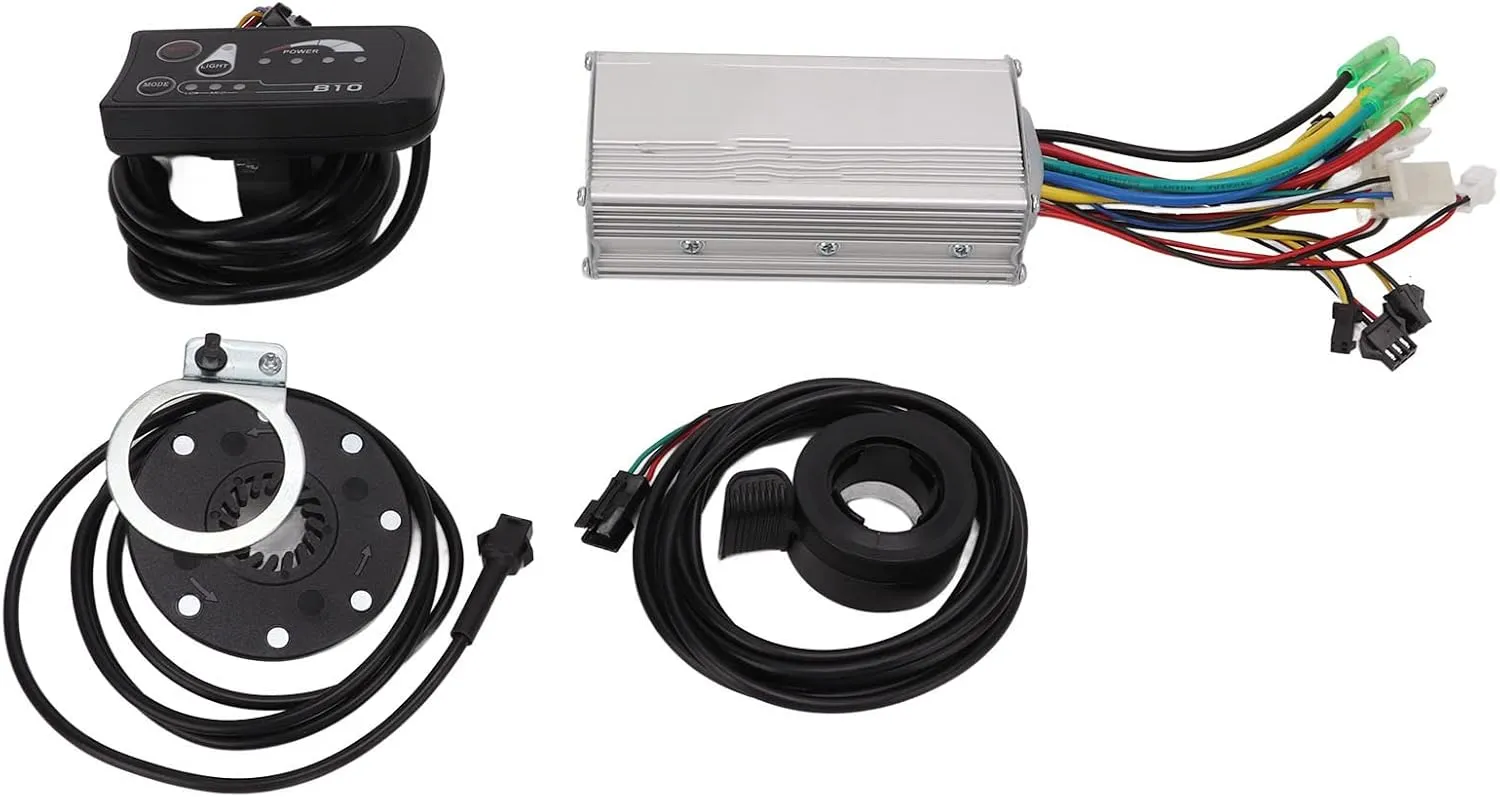

- Complete Modification Kit: Includes a 22A controller, S810 meter, throttle dial, power assist sensor wiring, and a boosting sheet. Everything you need for a successful electric bike conversion.
- sturdy and Waterproof: Designed for outdoor use, the controller set is fully waterproof, ensuring performance in various weather conditions.
Item Type: Bike Lithium Battery Modified Controller Kit
Material: ABS, Rubber, Aluminum Alloy, Metal
Gross Weight: 548g / 19.33oz
Product Size: 11x 5x3cm / 4.33x1.97x1.18in
Applicable: Suitable for 500W motor S810 configuration full ordinary controller small kit
Controller Rated Voltage: DC 36V/48V
Controller Current: 22A
Controller Speed Setting: 1.1-4.2V
Supercharger: 1:5
Applicable Motor Power: 500W
Brake: Input low level
Controller Line Definition:
1. Black Yellow Brown Wire(3pin): Power magnetic point
2. Red and Black Wire(3pin): Throttle
3. Black and Yellow Wire(2pin): 2pcs power off brake lever
4. Green Yellow Blue Single Line: Phase line
5. Multi Color Six Hole Wire: Hall wire
6. Multi Color Wire(5pin): Meter
7. Black and Red Single Line: Power line
8. Black and Red Wire(2pin): 2pcs light
Package List：
1 x Controller
1 x Meter (Including Bracket and Connector)
1 x Throttle Dial
1 x 8C Power Assist Sensor Wiring
1 x 8C Power Assist Sensor Boosting Sheet
2 x Manual
Note:
Note that the communication protocol is UART.
