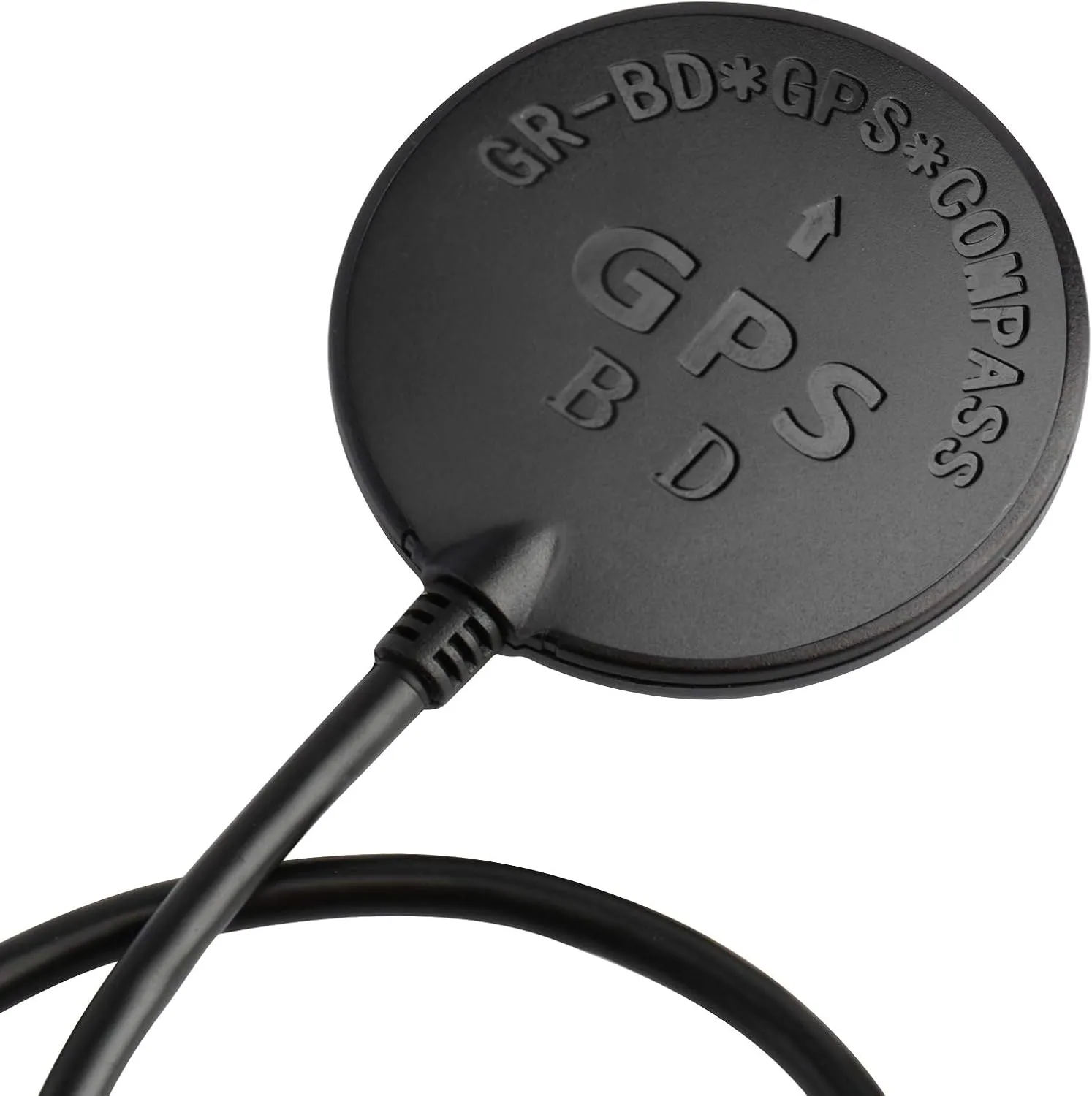

- Wide range of use: for APM flight control, PIX flight control, PX4 flight control; The outlet terminal is directly compatible with the APM serial port and I2C port. Plug and play other flight controllers are also available, such as MWC flight controller.
- Main chip: U-B-LOX M8030 KT， Built-in TCXO, which maintain good consistency in the temperature of -40 ℃ ~ 85 ℃; Tracking channels: 72 Three in one Function: Support GPS BDS dual-mode positioning, plus compass chip! Let you realize the desire of one module can be used in many ways!
- Positioning; Auto-positioning: 2.5m [in average]; Auxiliary positioning: 2m [average], with SBAS assistance; Drift: <0.02m / s; Timing accuracy: 60ns; Reference coordinate system: WGS-84; Maximum altitude: 50000 meters [Please pay attention to atmospheric; Temperature during high-altitude flight, and please open the flight mode]; Maximum speed: 500m / s; Acceleration: <4g.
- Three in one Function: Support GPS BDS dual-mode positioning, plus compass chip! Let you realize the desire of one module can be used in many ways!
Features:
- Main chip: U-BLOX M8030 KTBuilt-in TCXO, which maintain good consistency in the temperature of -40 ℃ ~ 85 ℃.
- GPS L1 C/A: The antenna built-in high-quality ESD protection [TVS tube] to ensure ESD keep 8KV above [Air discharge].
- SBAS L1C/A: It’s easy to adjust the baud rate, the default is 9600bps, and it supports command adjustment and internal adjustment.
- QZSS L1C / A: Support wide area differential GPS enhanced system in default. [S129, S137…. Wide area enhanced satellite.
- GLONASS L1OF: Built-in PATCH ANTENNA.
- GALILEO E1B/C1: Built-in magneto resistive sensor, I2C port output.
- BeiDou BD2[Option]: GPS and Beidou dual-mode positioning are supported in default.
Tracking channels: 72
Product Size:41.5*39.6*5.3mm
Positioning performance：
♥ Autonomous positioning: 2.5m [average]
♥ Auxiliary positioning: 2m [average], with SBAS assistance.
♥ Drift: <0.02m/s
♥ Timing accuracy: 60ns
♥ Reference coordinate system: WGS-84
♥ Maximum altitude: 50000 meters [Pay special attention to atmospheric temperature when flying at high altitudes, and you need to turn on the flight mode]
♥ Maximum speed: 500m/s
♥ Acceleration: <4g
Electrical performance:
Tracking sensitivity: -161dBm
Capture sensitivity: -148dBm
Cold start time: 29s [average]
Warm start time: 28s [average]
Hot start time: 1s [average]
Interface electrical performance:
Wide voltage range: the main power supply is 3.0~5.5V
UART port: GPS data; I2C port: magnetic compass data [HIC5883L]
GPS output data baud rate 9600bps, I2C port ADDR: 7bit 0x1E, 8bit_read 0x3D, 8bit_write Ox3E
Package Including:
1 X GPS BDS C
- Product Dimensions : 1.63 x 1.56 x 0.21 inches; 0.63 ounces
- Date First Available : November 21, 2020
- Manufacturer : Deegoo-FPV
- Country of Origin : China
