Sensors

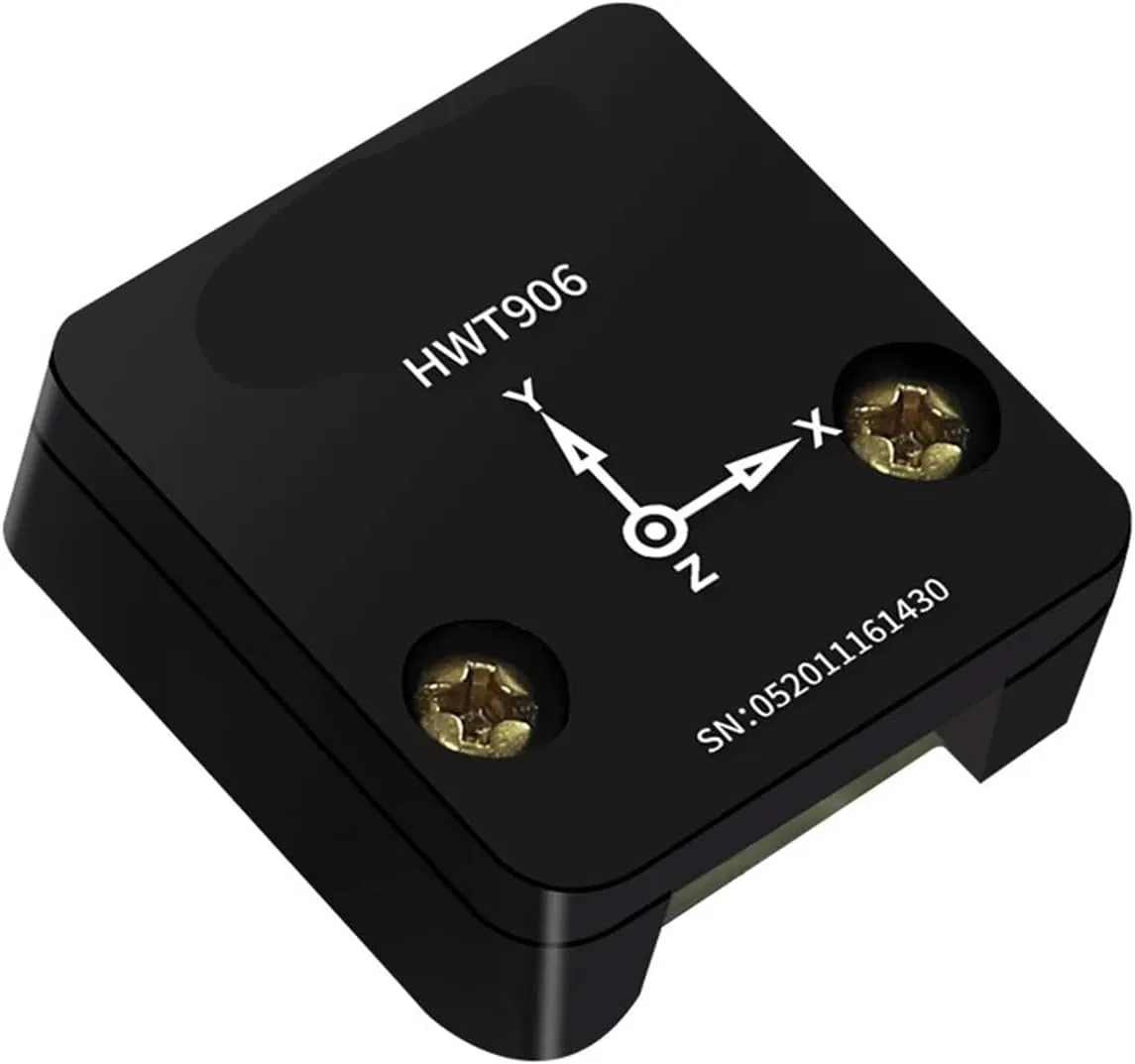

High-Precision Inclinometer HWT906 1000Hz Industrial-Grade Accelerometer Digital Compass Gyro,with Temperaturer Compensation
==========
Hign-concerned Chemical : None
is_customized : Yes
Usage : Tilt Angle Measurement
Model Number : HWT906
Type : Acceleration Sensor
Output : Digital Output
Voltage Input : 3.3-5V
Current= : <25 mA

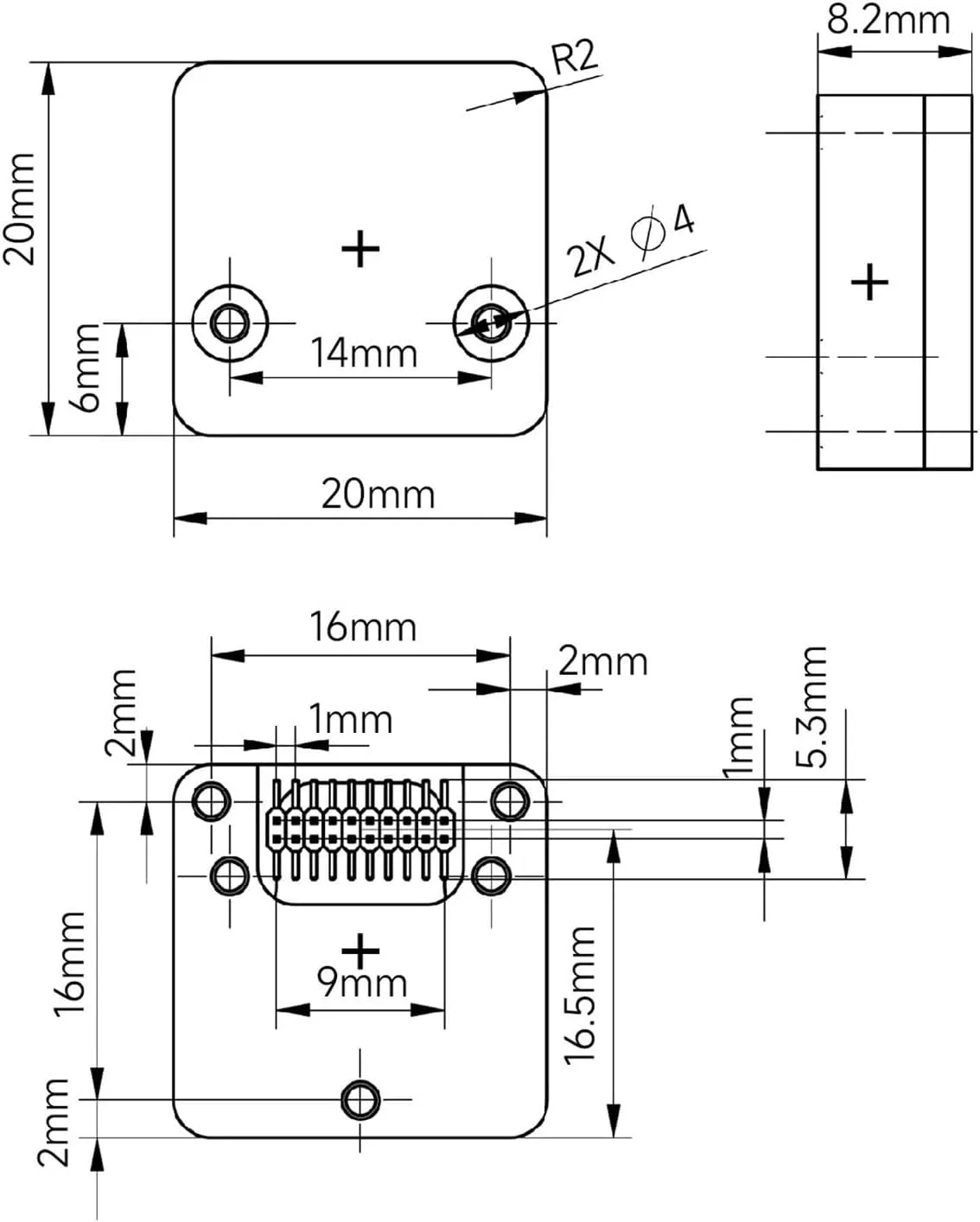

Volume : 20mm X 20mm X 8.2mm
Feature : Temperature Compensation
Measuring : 3-axis XYZ Acceleration, Angular rate, Gyro, Angle, Magnet Field
Measurement Angle : X/Z-axis: -180 degree, Y-axis -90 degree
Output Frequency : 0.2Hz ~1000Hz
Measurement Accuracy : X/ Y axis 0.05 degree, Z axis 1 degree
Interface : TTL, 12C, SPI
Technical Support : Provide Android App, PC software, Sample code
After-Sale Service : Lifetime Technical Support
