PRODUCT PARAMETERS

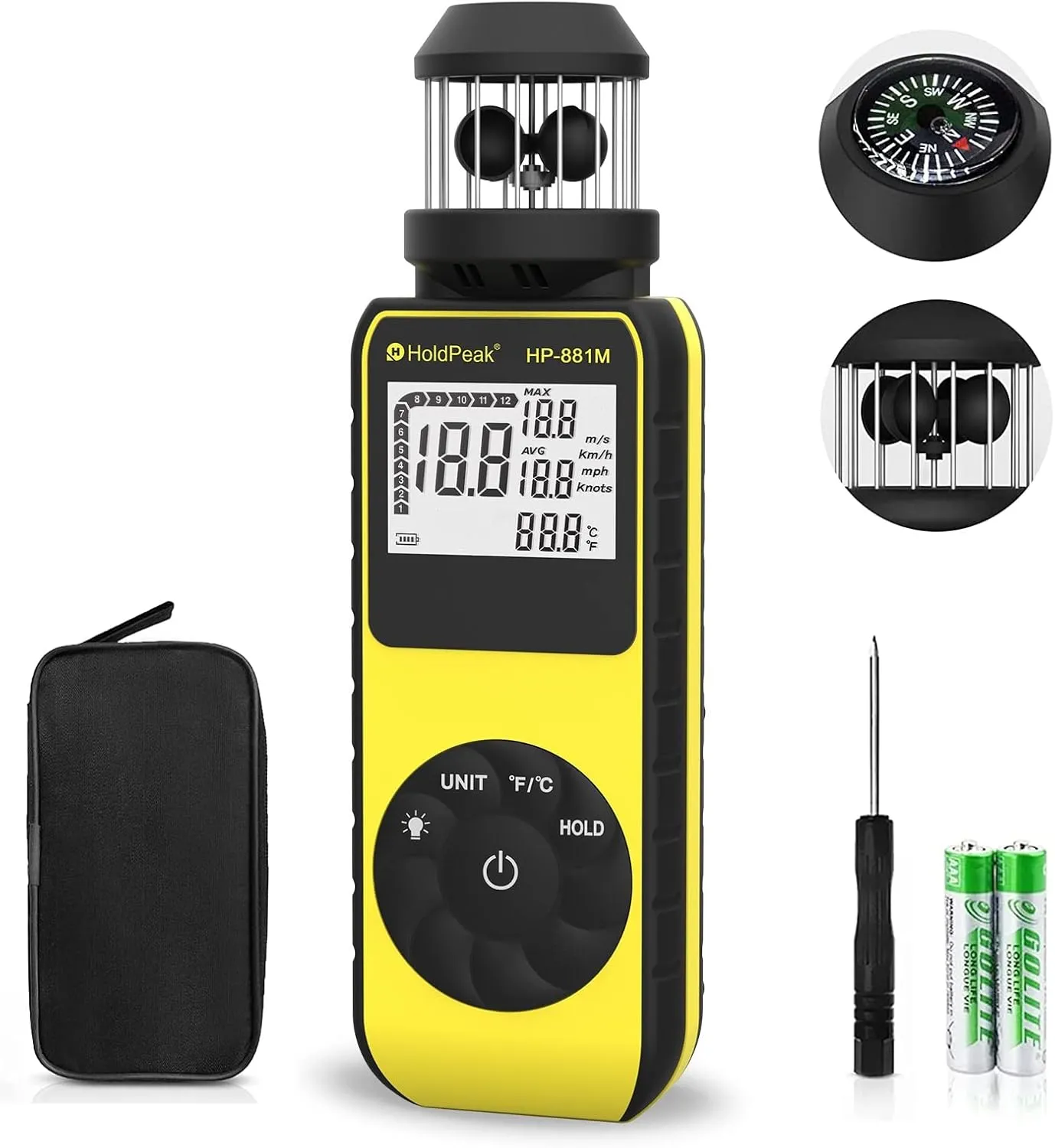

Product Name: HP-881M Cup Anemometer

Brand: HOLDPEAK

Color: Yellow

Size: 165*51*38mm

Weight: about 116g (including battery)

Battery Type: 2*1.5V AAA batteries

Machine Power Consumption: <3mA (without backlight)

Automatic Shutdown: about 15 minutes

Tripod Thread: UNC 6.35x1.27mm

MEASURING RANGE

Wind Speed Measurement Range: 0.7 ～ 42 m/s; 1.5～ 93 mph;

2.5 ～ 150 km/h; 1.3 ～ 81 knots;

Resolution: 0.1 (0 ~ 19.9), 1 (20 ~ 150)

Accuracy: typ. ±4%, ±1 Digit

Temperature Measurement Range: -10°C ~ 45°C(14°F ~ 113°F)

Accuracy: ±2°C (±3.6°F)

Operating Temperature Range: -10°C ~ 45°C(14°F ~ 113°F)

Storage Temperature Range: -40℃～60℃(-40℉～140℉)

Wind Speed Unit (adjustable): (m/s)； (mph)； (Km/h)；Knots

Screen Display:

Current Wind Speed (main display), Maximum Wind Speed (MAX)

Average Wind Speed (AVG), Beaufort Scale Bar Graph

MEASUREMENT

1. Turn on the machine, select the wind speed unit to be measured, and hold the tester vertically upward without considering the direction of the wind.

2. Use of hold key: measure the maximum value, average value, and final value within a period of time. First fix the anemometer at the place where you want to measure the wind speed, press the power button, wait for a period of time to be tested, then press the HOLD button, the screen will display the "Hd" symbol, which means that the measured value is locked, take the anemometer down, and the screen will display Current value, average value, maximum value.

PACKAGE LIST

1* HP-881M Anemometer

2* Batteries

1* Screwdriver

1* Instruction Manual
