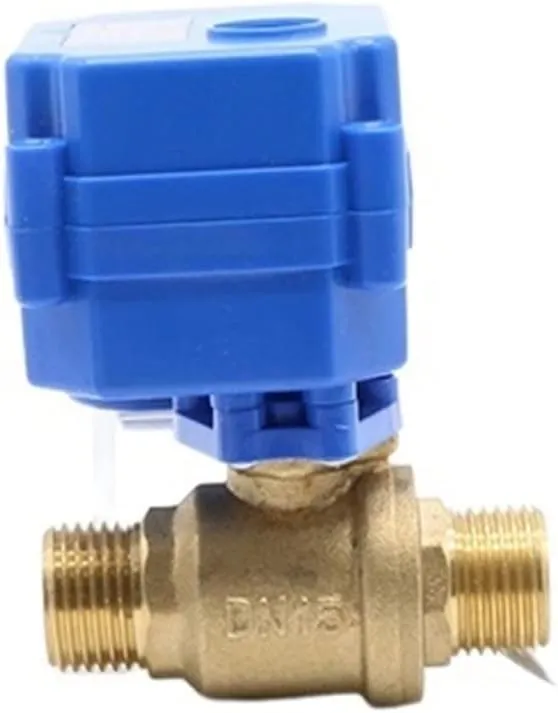

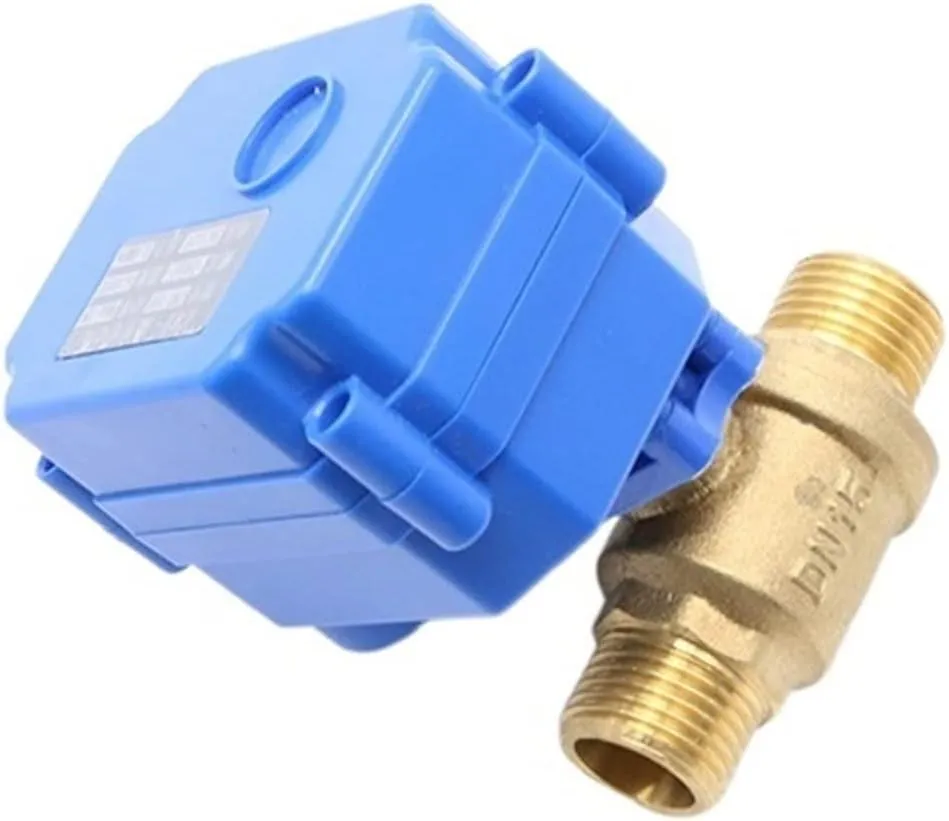

DN15 G1/2 MxM brass electric ball valve MINI Automatic motor valve AC/DC9-24V / AC220V CR03 / 04
Model:CWX-15N
Volatage:AC/DC9-24V / AC220V optional
Features:
1. beautiful appearance compact all-metal gear transmission mechanism reliable performance output torque long life;
2. the electrical spacing positioning accuracy consistency is very high;
3. actuator and valve assembly can be multi-angle assembly convenient in demand for space allocation;
4. Ball floating seal structure no drip suitable for heavy dirt and long-term non-action situations
5. Replace solenoid valve or solenoid valve does not work properly environment;
6. Protection level can reach IP65 can be used in a relatively humid environment.
Specification :
Product size : G (bsp)1/2" DN15
Maximum working pressure : 1.0Mpa
circulation means : water air gas.
rated voltage : AC/DC9-24V / AC220V
Wiring Control Methods : CR-03 / CR04 optional
<;;5S
Product life: 100 000 times
Valve body material : brass
<;;5W
Actuator Material : engineering plastics
Rotation of actuator : 90 degree
Max.Torque output : 6 n. m
Medium temperature: 0-90°C
Manual override : NO
Protection class : IP65
Dimensions
cables
Packing
one pieces a carton
